A garage door can weigh several hundred pounds, which is why garage sensor requirements are about more than getting an opener to work. The safety system has one job when the door is closing: detect a person, pet, vehicle, or object in harm’s way and stop or reverse the door before an injury or costly impact occurs. If your door closes only when you hold the wall button, reverses without reason, or ignores an obstruction, treat it as a safety issue rather than an inconvenience.
What Garage Door Safety Sensors Do

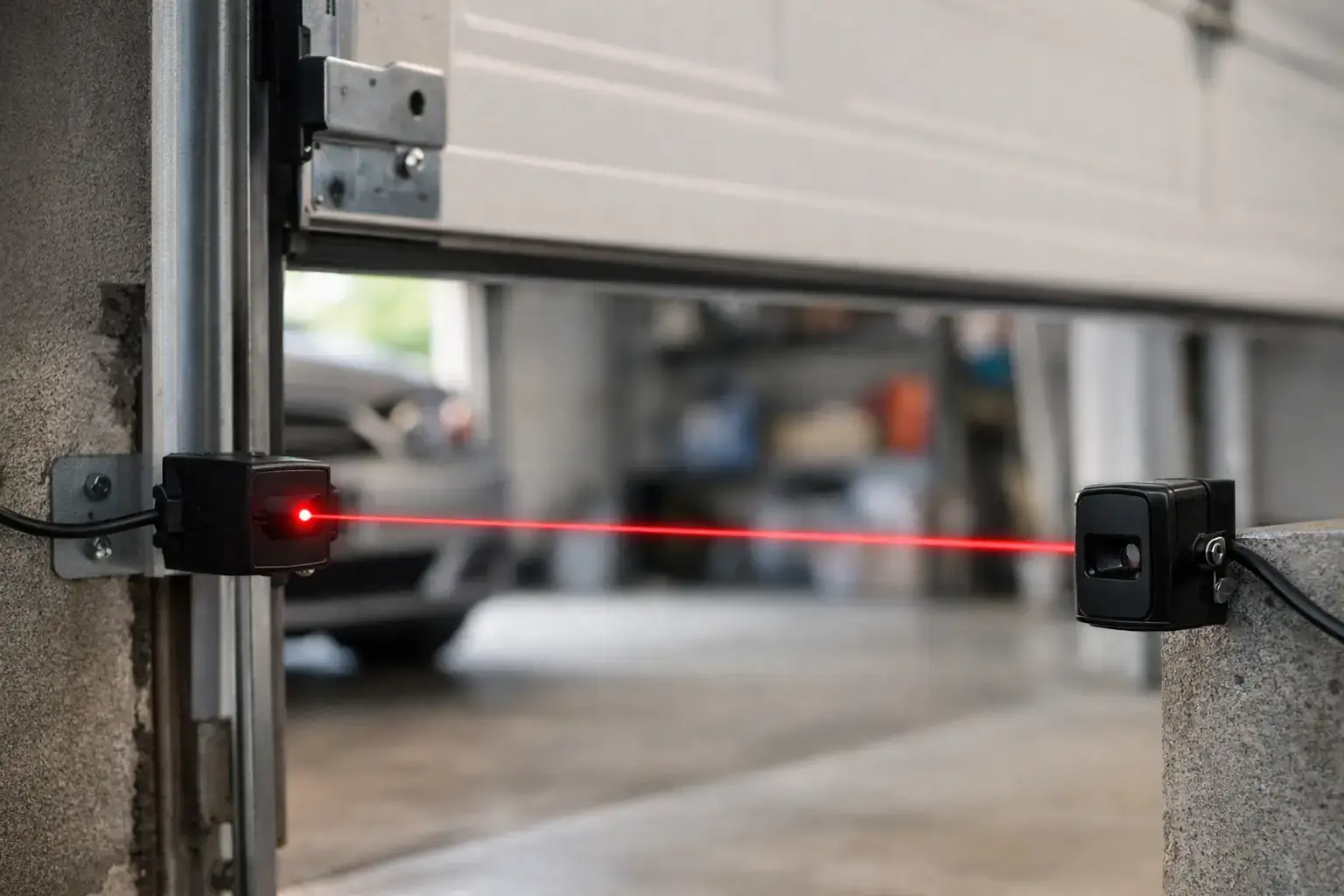

Most residential openers use two photo-eye sensors mounted near the bottom of the door tracks. One sensor sends an invisible infrared beam to the other. When that beam is interrupted while the door is closing, the opener should stop and reverse.
This system protects the area across the door opening, where a child, pet, bicycle, trash bin, or vehicle bumper may be difficult to see from inside the garage. It does not replace common sense or proper supervision, but it is a critical layer of protection built into modern automatic garage door systems.
Photo eyes are different from the opener’s force-reversal setting. The force setting is intended to make the door reverse if it contacts an object. Sensors detect an obstruction before contact. Both protections need to work correctly.
Residential Garage Sensor Requirements
For residential automatic garage door openers in the United States, entrapment protection has long been a required safety feature. Openers manufactured since 1993 are generally required to include an external reversing sensor system, most commonly photo eyes, as part of their safety design.
The commonly accepted installation standard places photo-eye sensors no more than 6 inches above the garage floor. That low position matters. A beam mounted higher could miss a small child, pet, or low object in the path of a closing door.
The sensors must also be installed on opposite sides of the door opening, aimed directly at each other, and securely attached so they cannot shift out of alignment. Wiring must be protected from damage and connected according to the opener manufacturer’s instructions. A sensor that is loosely mounted, spliced poorly, or exposed to repeated impact may work intermittently before it fails completely.
A functioning sensor system should prevent the door from closing by remote control when the beam is blocked. Many openers allow a door to close only while the wall control is pressed and held when there is a sensor fault. That feature is a warning, not a workaround. Holding the button bypasses the normal automatic closing function and should not be used as a long-term solution.
The Sensor Lights Matter
Most photo-eye sensors have indicator lights that help identify a problem. The exact color and behavior vary by manufacturer, but a steady light on both sensors usually means they are powered and aligned. A blinking, dim, or unlit indicator can point to misalignment, a blocked lens, damaged wiring, weak connections, or a failed sensor.
Do not assume a glowing light means the system is fully safe. A sensor can appear aligned but still have a damaged wire or inconsistent signal. A simple operational test is still necessary.
Requirements Also Depend on the Whole Door System
Photo eyes cannot compensate for a garage door that is mechanically unsafe. A bent track, broken spring, worn roller, loose cable, or improperly balanced door can create dangerous movement that no sensor adjustment will fix.
The opener should not be used to force a heavy or unbalanced door up and down. If the door feels unusually heavy when disconnected from the opener, slams shut, hangs unevenly, or makes grinding sounds, stop using it and schedule a professional inspection. Springs and cables are under high tension and should not be adjusted by a homeowner.
How to Test Your Garage Door Sensors
A quick test once a month helps catch sensor trouble before it becomes an emergency. Start with the doorway clear and close the door using the wall button or remote. While the door is moving downward, pass a long object such as a broom handle through the sensor beam near the floor. The door should stop and reverse promptly.
Then check the force-reversal function separately. With the door fully open, place a firm object such as a 2-by-4 laid flat on the floor in the center of the opening. Close the door. When it contacts the object, it should reverse. Remove the object after the test.
Never use a person, pet, hand, or foot to test either safety feature. If the door does not reverse during either test, disconnect it from automatic use if possible and arrange service. Continuing to operate a door with failed entrapment protection puts everyone using the garage at risk.
Common Reasons Sensors Stop Working
A blocked or dirty lens is one of the simplest causes. Road salt, dust, spiderwebs, leaves, and water spots can interfere with the beam, especially in Massachusetts garages after winter weather. Wipe both lenses gently with a soft, dry cloth and make sure nothing is stored in front of either sensor.
Alignment is another frequent issue. A bump from a car tire, snow shovel, storage bin, or child’s toy can move a sensor just enough to break the connection. Look for sensors that are tilted, loose, or at noticeably different heights. Do not bend brackets aggressively or defeat the system by taping components in place.
Sunlight can also cause occasional problems. Low afternoon sun may shine directly into one photo eye and interfere with its signal. In some garages, a technician can improve performance by repositioning the sensor bracket within approved mounting limits, correcting the angle, or using compatible replacement components.
Damaged wiring is more likely in older garages, unfinished spaces, or locations where wires run along exposed framing. Rodents, moisture, accidental fastener damage, and corrosion can all interrupt the circuit. Replacing only the visible sensor may not solve a wiring problem.
Commercial Garage Sensor Requirements Are Often More Complex
Commercial overhead doors have different operating conditions and may require more than a pair of photo eyes. Warehouses, loading areas, retail facilities, multifamily garages, and service bays can have larger, faster, or frequently operated doors. The correct safety setup depends on the operator type, door size, closing speed, activation method, and the risks in the opening area.
A commercial system may use monitored photo eyes, a monitored sensing edge along the bottom of the door, light curtains, warning lights, audible alerts, or a combination of devices. “Monitored” means the operator checks that the safety device is connected and functioning, rather than simply accepting any signal from a sensor.
The requirements may also be affected by the local authority having jurisdiction, building conditions, and fire or life-safety considerations. A facility manager should not replace a failed device with a generic part or bypass a monitored circuit to keep traffic moving. That can create liability, expose employees or tenants to injury, and leave the door out of compliance with the operator’s safety standard.
Why Preventive Inspections Matter for Facilities
A commercial door may cycle dozens of times each day. That use puts pressure on sensors, bottom edges, cables, rollers, hinges, operators, and control stations. Regular inspection is the practical way to catch loose mounting hardware, damaged wiring, misaligned beams, and worn mechanical parts before a door blocks deliveries or leaves a building unsecured.
For property managers, it is also useful to document inspections and repairs. Clear service records show what was found, what was repaired, and whether safety devices were tested after the work was completed.
When to Call a Garage Door Professional
Cleaning a photo-eye lens and moving a stored item out of the beam are reasonable homeowner checks. Beyond that, sensor diagnosis can become a wiring, opener, or mechanical door issue quickly. Call for service if sensor lights will not stay steady, the door closes only with constant pressure on the wall button, the door reverses unpredictably, or a safety test fails.
A qualified technician can verify sensor placement, alignment, wiring continuity, opener settings, force reversal, and the condition of the door itself. Triple A Garage Doors Inc. provides in-person assessments and straightforward repair recommendations for residential and commercial door systems throughout Greater Boston.
A safety sensor is a small component with a serious purpose. Keep the opening clear, test the system regularly, and do not accept unreliable operation as normal. A properly repaired door should close smoothly, reverse when it needs to, and give you confidence every time it moves.
