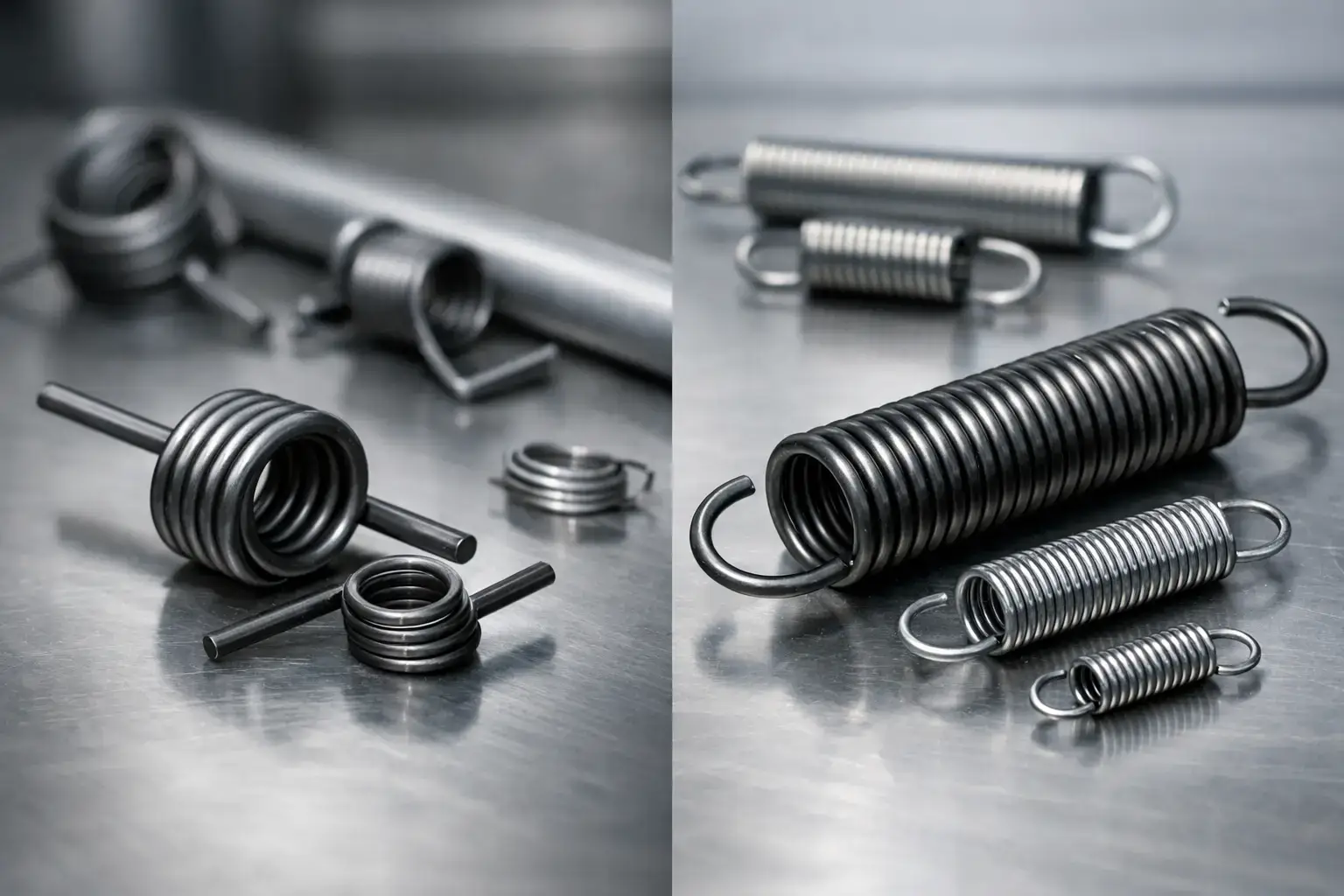

Torsion Springs Versus Extension Springs

A garage door that will not open, slams shut, or suddenly feels far too heavy usually has a spring problem behind it. When comparing torsion springs versus extension springs, the right choice is not only about price. It affects how smoothly your door runs, how safely it operates, and what type of repair your existing system can support.

For homeowners and property managers in Greater Boston, the most useful starting point is simple: identify the spring system already installed, understand what failed, and have a qualified technician match the replacement parts to the door’s actual weight and use. Garage door springs carry extreme tension. They are not a safe DIY repair.

How Garage Door Springs Do Their Job

Garage doors can weigh anywhere from roughly 100 pounds to several hundred pounds, depending on their size, material, insulation, windows, and hardware. The opener does not do all the lifting. Springs counterbalance most of that weight, allowing the door to move with controlled force.

When springs are correctly sized and adjusted, a disconnected garage door should feel manageable to lift by hand and should stay near the middle of its travel instead of crashing down or rising on its own. When a spring breaks or loses tension, the opener may strain, the door may lift unevenly, or it may not move at all.

Both torsion and extension systems perform this counterbalancing job. The difference is where they sit, how they store energy, and how they transfer that energy to the door.

Torsion Springs Versus Extension Springs: The Main Difference

Torsion springs are mounted horizontally above the garage door opening. They sit around a metal shaft, and as the door closes, the springs twist to store energy. As the door opens, that stored energy turns the shaft and helps lift the door through cables and drums at each end.

Extension springs run along the horizontal tracks on either side of the garage door. They stretch as the door closes and contract as it opens. Pulleys and cables transfer that pulling force to the door.

You can often identify the system from inside the garage with the door closed. A spring or pair of springs above the header usually means torsion. Long, narrow springs stretching beside the upper tracks usually means extension. Do not touch either type to inspect it closely. A broken spring can be obvious, but determining the correct replacement requires more than seeing a gap or stretched coil.

Why Many Newer Doors Use Torsion Springs

Torsion systems are common on modern residential doors, especially heavier insulated doors and wider double-car garage doors. They generally provide smoother, more even lifting because the force is distributed through a shaft across the top of the opening.

A properly installed torsion system can also offer better control when a spring fails. The spring remains mounted on the shaft rather than hanging beside the tracks. That does not make a broken torsion spring harmless, but the setup is typically more contained than an extension spring without proper safety cables.

Torsion springs are available in different cycle ratings. A standard spring may be designed for about 10,000 cycles, with one cycle meaning the door opens and closes once. Higher-cycle options can make sense for busy households, multifamily properties, fire stations, shops, or commercial spaces where doors move repeatedly throughout the day.

The trade-off is upfront cost. Torsion hardware and installation are usually more involved, and accurate measuring is essential. Spring wire size, inside diameter, overall length, door height, drum size, and door weight all affect the correct setup. Installing a spring that is merely close enough can lead to poor balance, premature wear, and opener trouble.

When Extension Springs Make Sense

Extension spring systems remain a practical option for certain lighter residential garage doors. They can cost less to install and have long been used on single-car garages where overhead clearance or existing hardware makes them a straightforward fit.

For a homeowner replacing an existing extension system, staying with extension springs may be the most sensible repair when the door is light, the tracks and cables are in good condition, and there is no compelling reason to convert the entire counterbalance system. A reliable repair does not always require changing every component.

The key safety item is the containment cable. Each extension spring should have a safety cable running through its center and secured at both ends. If an extension spring breaks, this cable helps keep the broken spring from flying across the garage. Older systems sometimes lack these cables, and adding them is an important safety upgrade.

Extension systems can be more prone to uneven movement if cables, pulleys, or springs wear at different rates. A door that jerks, hangs crooked, rubs the tracks, or opens only partway needs a full inspection. Replacing one visible part without checking the rest of the lifting system can leave the underlying problem in place.

Cost Is More Than the Price of a Spring

It is understandable to focus on the immediate cost of spring replacement, especially when the car is trapped inside and the door will not operate. But torsion springs versus extension springs should be compared as complete systems, not as loose parts.

An extension spring repair may have a lower initial price, particularly when replacing like for like. A torsion conversion can cost more because it may involve a shaft, center bearing, end bearing plates, drums, cables, and additional labor. Yet a torsion setup may deliver smoother operation and be a stronger long-term fit for a heavy door or a door used many times each day.

The door’s condition matters too. If the rollers are worn, cables are frayed, tracks are bent, or the opener is already overworking, those issues should be addressed before they create another service call. Honest recommendations should explain what is required for safe operation, what is optional, and why.

Signs Your Springs or Counterbalance System Need Service

A loud bang from the garage is a common sign of a broken spring, but it is not the only warning. Call for service if the door becomes unusually heavy, rises only a few inches, opens crooked, moves with jerking motion, or the opener hums without lifting it.

Other warning signs include loose or tangled cables, a visible gap in a torsion spring, extension springs that appear stretched out when the door is open, or a door that will not stay in position during a manual balance test. Avoid repeatedly pressing the opener button when the door will not lift. Doing so can damage the motor, rail, gear, or belt while the opener tries to compensate for lost spring force.

If a cable has come off, keep people away from the door and do not attempt to force it closed. A door with failed springs or cables can shift unexpectedly.

Can You Convert From Extension to Torsion?

In many cases, yes. Conversion is possible when there is adequate headroom above the door and the framing can support the required hardware. It is often considered during a door replacement, after repeated extension-system repairs, or when a homeowner wants a smoother setup for a heavier insulated door.

Still, conversion is not automatically the best answer. A light, infrequently used door with a properly maintained extension system may not need it. A technician should measure the door, inspect clearance and track condition, and explain the real difference in cost and expected benefit before recommending a change.

For commercial doors, the decision can be more specialized. Door weight, daily cycles, building use, safety requirements, and downtime all matter. A warehouse or service facility may benefit from higher-cycle springs and a preventive maintenance plan more than from a simple like-for-like repair.

Why Spring Replacement Should Be Left to a Professional

Springs are tightly wound or stretched under significant force. Releasing that force incorrectly can cause serious injury and damage to the door, vehicle, or surrounding property. The risks are not limited to the spring itself. Winding cones, cables, drums, brackets, and bottom fixtures can all be dangerous when the system is under load.

A qualified garage door technician does more than install a new spring. They verify the door weight, select properly matched springs, inspect cables and bearings, set tension, test balance, check safety reversal, and make sure the opener is not doing work the springs should handle. Triple A Garage Doors Inc. provides in-person estimates and clear, upfront recommendations so customers understand the repair before work begins.

A garage door should feel dependable every time you leave for work, return home, or secure a business for the night. If yours is heavy, noisy, uneven, or stuck, treat it as a safety issue and have the spring system checked before a small failure becomes a larger repair.
